FPV Drone Kit 15-Inch carbon fiber Payload 7.5kg thermal imaging racing drones

Ask Lasest Price
Brand Name :	ZAi
Model Number :	ZAi-FPV15
Certification :	CE ROHS FCC
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000pcs/day
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

FPV Drone Kit 15-Inch carbon fiber Payload 7.5kg thermal imaging racing drones

Product Description

FPV Drone Kit 15-Inch carbon fiber Payload 7.5kg thermal imaging racing drones

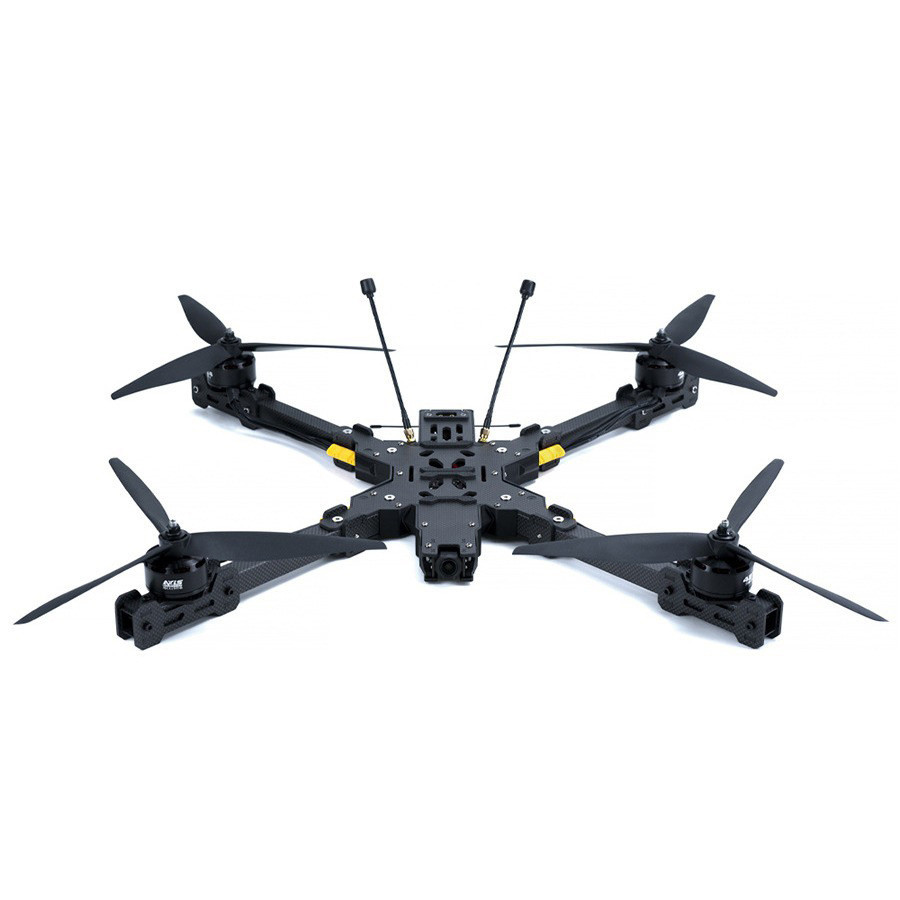

This 15-inch FPV kamikaze drone features a high-performance carbon frame and a powerful 4214 380KV motor. With a payload capacity of 7.5kg, it offers 8-15 minutes of flight time with load and up to 25 minutes without load. It boasts a 10km range, 120km/h max speed, and 5000m altitude. It's designed for serious aerial tasks and has a 16000mAh battery, F722 flight controller, and 5.8GHz video transmission. The drone supports a wide range of accessories, including a 1500TVL camera, 80A ESC, and durable HQProp 15x7x3 blades

Product Parameters

ZAi-PS15 Product Specification 15-inch fpv kamikaze drone

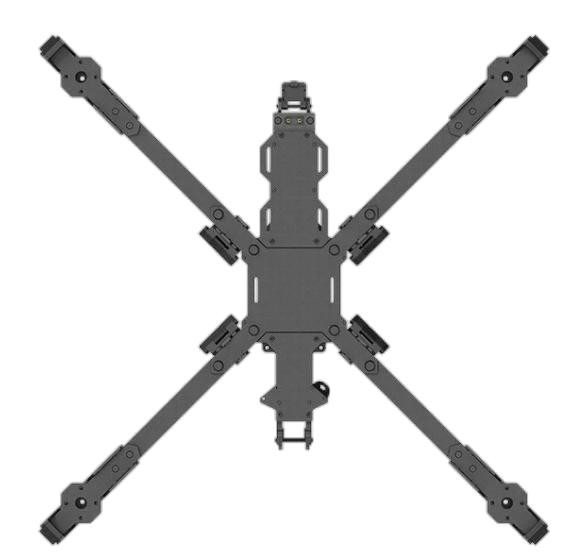

15-inch Carbon Frame		Motor 4214 380KV
Attribute	Value	Attribute	Value
Frame Dimension	L52W52H25 cm	Operating Rated Voltage	6-8S
Wheelbase	70cm	Motor Weight	246g
Carbon Plate Material	T300/T700	Maximum Thrust	4850g
Camera Spacing	2cm	Maximum Power	1760 W
Stack Mounting Hole	M3*30.5mm	Maximum Current	60A
VTX Mounting Hole	M220/25.5mm M330.5mm	Phase Resistance	48mΩ
Flight Control F722		ESC 80A 8S
Attribute	Value	Attribute	Value
BEC	5V2A ,9V2A	Input Voltage	8S
Input Voltage	12-50V(3-6S Lipo Recommended)	Continuous Current	80A
Firmware	Betaflight	Mounting Hole Spacing	30.5*30.5mm
Mounting Hole Spacing	30.5mm/M3	Weight	28g
Camera 1500TVL		VTX 5.8G 40CH 2.5W
Image Sensor	1 / 3′CMOS	Supported Voltage	7-28V
lens	2.1mm	Antenna Interface	MMCX
Power Supply	DC 5V-30V	Mounting Holes	20X20.M2
Pixels	1500 TVL	Output Power	PIT / 25 / 2500mW
Antenna		5.8G RHCP 150MM
RX		ELRS 915MHz
propeller		HQProp 1573

Product Advantages

Carbon Fiber Frame: high-strength carbon fiber to reduce weight and improve body stability, allowing it to work in a variety of environments
Large payload up to 7.5kg
High-Precision And Extremely Fast Flight: super strong power and strong fuselage, with 10inch blade, flight speed up to 30 m/s, built-in M10 high precision GPS chip, and accurate positioning, so that it is both fast and accurate
Antenna 5.8G RHCP 150mm: It is made of imported PC+ABS material which can withstand high-strength impact, Impact-resistant double-sheathed semi-rigid cable, Root reinforcement design, and 360 ° protection.

Product Application

flying enthusiasts, aerial photographers, projects, Israel military, army, DJI dealers, distributors, remote control companies, RC car companies, sports camera dealers, 3-axis hand-held gimbal agents, consumer electronics companies, supermarkets, online offline stores, physical shops, etc.
