Professional Drone 2T With 3-axis Gimbal Thermal 4K Camera Survey UAV Drones

Drone Specification

1	Aircraft	Faith 2 Pro		Note
	Size	Unfold: 191 X 262 X 107 mm ( L*W*H) Fold: 179X 108 X 74 mm ( L*W*H)
	W heelbase	280 mm
	Weight (Battery & Propellers Included)	562g
	Max Ascent Speed	4m/s(sport mode) 3m/s(Normal mode)
	Max Descent Speed	3m/s(sport mode) 2m/s(Normal mode)
	Max Speed	14m/s(sport mode) 10m/s(Normal mode)
	Max Service Ceiling Above Sea Level	4000 m
	Max Flight Time	32 mins
	Operating Temperature Range	﹣ 5°C~45°C
	Satellite Positioning Systems	GPS/GLONASS
	Hover Accuracy Range	vertical: +/- 0.5 m ± 0.2 m (ultrasonic system, optical flow system works) horizontal: +/- 1.5m ± 0.3 m (ultrasonic system, optical flow system works)
	Operating Frequency	2.4GHz
	Maximum flight height	120m
2 Optical flow system
	Optical flow system	yes
	Operating Environment	Surface with clear pattern and adequate lighting (lux > 15)
	Velocity Range	≤ 1.5 m/s at 6.6 ft (2 m) above ground
	Altitude Range	0.5~5m
3 Ultrasonic altitude system
	Ultrasonic altitude system	yes
	Operating Environment	except for the surface of water or ground of absorbing material (such as thick carpet)
	Velocity Range	≤ 3m/s
	Altitude Range	0.2~4.5m
4 3-axis gimbal
	Stabilization	3-axis (pitch:+30/- 120° ,roll:± 30° ,course:±30°)
	Controllable Range	pitch:-90°~20°
	Jitter Amount	0.01°
5 Normal camera
	Sensor	SONY CMOS;
	Image Size	3840*2160 (8mp)
	Video Recording Resolution	2716×1524 (2.7k) 25FPS
	Supported File Systems	FAT32(<=32GB) /exFAT(>32GB)
	Video	MP4
	Operating Temperature Range	0°C~40°C

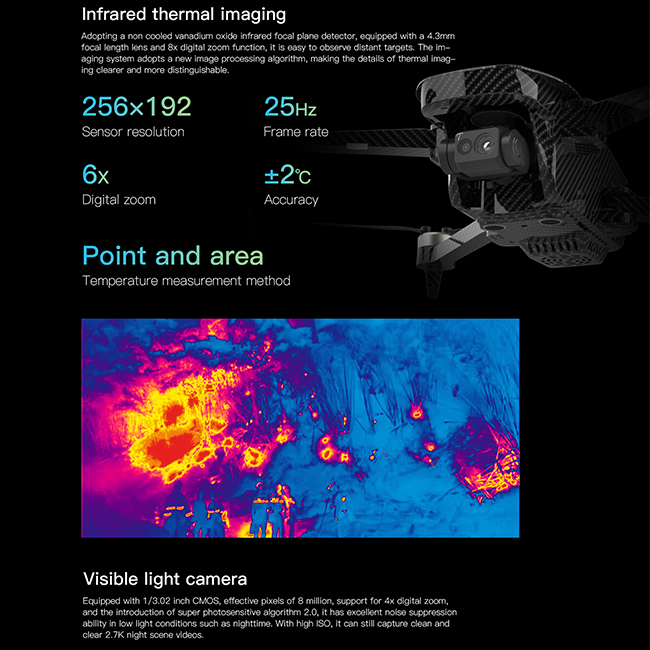

6 Thermal imaging infrared camera
	Sensor	Vanadium oxide uncooled infrared focal plane detector;
	Zoom	4.3mm
	Sensor resolution	256×192 @25Hz
	Infrared temperature measurement accuracy [1]	±2C or ±2%
	Measuring range	Industrial temperature measurement: - 15 C~ 150 C (high image quality) 50 C~550 C (wide range)
	Digital zoom	8x
	Effective measurement distance (person)	about 150m
	Pixel spacing	12 μm
	Wavelength range	8- 14 μm
	Photo Format	R-JPEG
	Video Format	MP4
	Temperature measurement method	Point temperature measurement, Regional temperature measurement
	Focusing mode	Non-thermal prime lens
	Support for file systems	FAT32
	Support for storage card types	MicroSD card, with a maximum support of 128GB and a the transmission speed of UHS-I Speed Grade 3 rated Micro SD card.
7 Battery
	Capacity	3000mAh
	Voltage	1 1.4V
	Battery Type	LiPo 3S
	Energy	35.34 W h
	Net Weight	196 g
	Charging Temperature Range	﹣ 5°C~45°C
	Max charging power	35 W
	charge time	<5h(with 5V 2A adapter)
8 APP
	Mobile App	C-Fly Go
	Maximum FPV transmission distance	10km
	Resolution	1080P
	Required Operating Systems	Android 6.0 above, IOS 10.0above
9 Charger
Input		5 V 2A(recommend)
Output		4.35V 0.7A×3
10 Remote Controller
Operating Frequency		2.4GHz
Screen type		LCD
Screen size		5.5inch
Resolution		1080P
maximum transmission distance		10 km
EIRP		＜26 dBm (FCC) ,＜20 dBm (CE/SRRC/MIC)
Usage time		about 4h
Operating Temperature Range		﹣ 5°C~45°C
Charger way		USB-C

Description

Search and Rescue Drone, also known as a SAR drone, is an unmanned aerial vehicle (UAV) specifically designed and equipped to assist in search and rescue operations. These drones are utilized to locate and provide aid to individuals in distress or in emergency situations. They are equipped with advanced sensors, cameras, and communication systems to enhance their capabilities for effective search and rescue missions.

Search and Rescue Drones are typically equipped with high-resolution cameras, including thermal imaging cameras, to aid in locating missing persons or individuals in difficult-to-reach areas. The cameras provide real-time video feeds and still images that can be analyzed by rescue teams to identify the location and condition of the individuals in need of assistance.

These drones often have GPS systems and autonomous flight capabilities, allowing them to navigate autonomously or follow pre-defined routes. They can cover large areas quickly and efficiently, reducing the time and resources required for manual search operations. Additionally, obstacle avoidance sensors and advanced flight control algorithms enhance their ability to maneuver safely in challenging environments.

Product Strength

• Thermal imaging
• Drone:0.56kg/280mm/foldable
• Battery:3000mAh 3S,11.4v,0.2kg
• the flight distance is 10km, flight time 30mins
• 2.7K 25 FPS/8mp
• support 4G
• 3-axis brushless motor gimbal

Product Features

• High-resolution Cameras: Search and Rescue Drones are equipped with high-resolution cameras, including thermal imaging cameras, to capture detailed images and videos of the search area. These cameras provide visual data that aids in locating individuals in distress, even in low-light or adverse weather conditions.
• Autonomous Flight Capability: These drones often have autonomous flight capabilities, allowing them to navigate and conduct search operations without constant manual control. They can follow pre-programmed flight paths or use advanced GPS systems to cover large areas efficiently.
• Advanced Sensors: Search and Rescue Drones are equipped with advanced sensors such as obstacle avoidance sensors, altitude sensors, and GPS systems. These sensors enhance the drone's ability to detect and avoid obstacles, maintain stable flight, and accurately navigate the search area.

Product Application

• Natural Disasters: Search and Rescue Drones are deployed in natural disaster scenarios such as earthquakes, hurricanes, floods, or avalanches to locate and assist individuals trapped or in need of rescue. They can access remote or dangerous areas and provide real-time information to rescue teams.
• Wilderness Search and Rescue: SAR drones are used in wilderness settings, such as forests, mountains, or remote areas, to aid in locating lost or injured hikers, campers, or climbers. The drones can cover large areas quickly, providing valuable visual data for search teams.
• Urban Search and Rescue: In urban environments, such as collapsed buildings or disaster-stricken areas, SAR drones play a crucial role in search and rescue operations. They can navigate through debris, assess structural integrity, and assist in locating survivors or victims.
